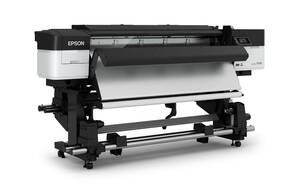

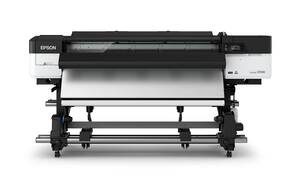

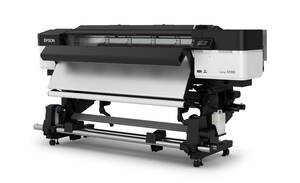

Epson SureColor SC-S7130 64-Inch Eco-Solvent Printer

Incredible Value with Exceptional Print Quality

The Epson SureColor SC-S7130 is designed to deliver exceptional quality at affordable cost of ownership for all types of indoor and outdoor commercial printing applications including posters, signs, banners, backlit panels, interior decorations, exhibition panels and more. Produce consistent and high image quality with Epson's advanced PrecisionCore MicroTFP printhead, Epson Precision Dot - Epson's proprietary advanced image processing technology, and the new Epson UltraChrome GS3 eco-solvent ink that has a wider colour gamut along with outstanding gloss level and colour vibrancy.

Exceptional print quality at affordable cost of ownership
Upgraded PrecisionCore MicroTFP Printhead for faster print speed¹
Ultra reliable media feeding system
Wide media versatility

Find Ink Support

Overview

The SC-S7130 is engineered for a wide range of applications, including outdoor and indoor signage, banners and more. Its versatility and reliability, coupled with its cost effective ownership, make this printer a valuable addition to any print service provider’s lineup. The SC-S7130 is a testament to Epson’s dedication to creating innovative solutions that empower businesses to remain competitive while meeting their unique needs.

Improved Productivity - Built with latest generation PrecisionCore Micro TFP printhead for faster speed, precision, and consistent print quality.

Proven Reliability - The ultra reliable media feeding system is retained from the SC-S40670 known for stable operation and printing accuracy.

Incredible Value - Low cost of investment with faster speed and higher productivity.

Improved Colour Consistency - New temperature sensor near the ink dispensing nozzles ensures consistent colour output from first to last print.

Larger Ink Packs - Upsized 800ml ink packs for less frequent ink replacement.

4.3" Tiltable Touch Display - Upgraded optical touch display for more intuitive operation even with gloves on.

Remote Monitoring - Epson Cloud Solution PORT allows for printer fleet monitoring 24/7.²

What's in the box:

SureColor S7130 Printer
Ink Packs (800ml) - Cyan, Magenta, Yellow, Black
Epson Edge Print PRO RIP
Power Cord
Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2)
Waste Ink Bottle
Ink Cleaner
Cleaning Sticks
User Guide Kit

Specifications

Tinta:

Tipe Tinta: Teknologi Tinta GS3 Epson UltraChromeâ„¢Colours: 4-Colour: Cyan, Magenta, Yellow, BlackKapasitas Tinta: Kartrid tinta 700 ml Konfigurasi Tinta: 4 warna - Cyan, Magenta, Kuning, HitamInk Brand Name: UltraChrome GS3 Ink

Spesifikasi Listrik:

Konsumsi Daya: Operating: Approx. 650W
Ready: Approx. 480W
Sleep: Approx. 3W
Power Off (Standby): Approx. 0.3WPasokan Tegangan: AC 100-120V/ 200-240V 50/60Hz

Pencetakan:

Teknologi Cetak: Kepala Cetak TFP® PrecisionCore™Print Head: PrecisionCore MicroTFP PrintheadKonfigurasi Nozzle: 360 x 2 Nozzle setiap warna (x4)Resolusi Cetak Maksimum: 1440 x 1440 dpiUkuran Tetesan Tinta Minimum: 4.2 plKecepatan Cetak: Maksimum Kecepatan - 1 Pass: Hingga 58,4 m²/h (360 x 720 dpi)
Kecepatan Tinggi - 2 Pass (Papan Iklan): Hingga 29,4 m²/h (720 x 720 dpi)
Produksi 1 - 3 Pass: Hingga 20,8 m²/h (720 x 720 dpi)
Produksi 2 - 4 Pass: Hingga 16,6 m²/h (720 x 720 dpi)
Produksi 3 - 6 Pass: Hingga 11,0 m²/h (720 x 1440 dpi)
Kualitas Tinggi - 8 Pass: Hingga 8,6 m²/h (720 x 1440 dpi)
Kualitas Maksimum 1 - 12 pass: Hingga 4,7 m²/h (1440 x 1440 dpi)
Kualitas Maksimum 2 - 16 pass: Hingga 3,5 m²/h (1440 x 1440 dpi)
Kualitas Maksimum 3 - 24 pass: Hingga 2,6 m²/h (1440 x 1440 dpi)Maximum Printable Area: Maksimum Lebar Pencetakan: 1616 mm; Margin Sisi: 5 mm kedua sisi, 10 mm dengan pelat penahan mediaMargin (Roll Paper): 5mm (Right/ Left) (With Media Edge Plates - 10 mm)Resolusi Maksimum: 1200 x 1200 dpiMaximum Print Speed: 1 Layer, Colour:
1 pass: Up to 75.1 m²/h (300 x 600 dpi)
2 pass: Up to 38.7 m²/h (600 x 600 dpi)
3 pass: Up to 26.9 m²/h (600 x 600 dpi)
4 pass: Up to 19.2 m²/h (600 x 600 dpi)
4 pass (High Quality): Up to 17.5 m²/h (600 x 600 dpi)
6 pass: Up to 13.5 m²/h (600 x 1200 dpi)
6 pass (High Quality): Up to 12.2 m²/h (600 x 1200 dpi)
8 pass: Up to 10.2 m²/h (600 x 1200 dpi)
8 pass (High Quality): Up to 8.8 m²/h (600 x 1200 dpi)
12 pass: Up to 6.2 m²/h (1200 x 1200 dpi)
16 pass: Up to 4.7 m²/h (1200 x 1200 dpi)
24 pass: Up to 3.3 m²/h (1200 x 1200 dpi)Volume Tetesan Tinta Minimum: 4.3pl

Penanganan Media Gulung:

Maximum Roll Diameter: Max. 250mmMaximum Roll Weight: Max. 45kgLebar Media: 300 hingga 1626 mmKetebalan Media: Hingga 1 mmUkuran Inti Gulungan: 2 atau 3 inciDiameter Luar Gulungan: Hingga 250mmReel Outer Diameter: Hingga 200 mmRoll Weight: Hingga 45 KgMargin Kiri / Kanan: 5 mm setiap sisi (10 mm saat menggunakan Panduan Penahan Media)Maximum Reel Diameter: Max. 200mm

Umum:

Sistem Operasi: Windows Vista/7/8/8.1/10 (64bit) atau lebih baru, Mac OS 10.6 atau lebih baruSuhu: ● Simpan: -4 hingga 104 derajat F (-20 hingga 50 C)Dimensions: 2.620 x 880 x 1.338 mm (L x D x T) (Simpan)Garansi: Garansi terTepi 1 tahunOperating Temperature: 15 - 35 °COperating Humidity: 20 - 80 % RH (tanpa kondensasi)Berat: 279 kg (Tanpa Tinta)Memori: 512 MB utama + 128 MB JaringanPanel Kontrol: 4.3" Optical Touch Display PanelOpsi: Additional Print Drying System/ Media Edge PlateBahan Habis Pakai: Maintenance Parts Kit/ Waste Ink Bottle/ Cleaning Stick/ Clean Room Wiper/ Ink Cleaner

Detil Printer:

Bahasa Printer: Standar: ESC/P rasterPanel Kontrol: LCD warna 2,7"Antarmuka: USB 2.0 Kecepatan Tinggi , Ethernet 100BASE-TX/1000BASE-T

Daya:

Konsumsi Daya: Operasi: Sekitar 480W
Siaga: Sekitar 330WW/ Pemanas Nyala
Daya Mati: Kurang dari 1,5WRequirement: Input Tegangan AC 100-240V 50/60 Hz/10 - 5 A

Penanganan Kertas:

Penanganan Paper: Umpan gulungan belakang (inti 2 "/3" dengan diameter maksimum 250 mm dan hingga 45 kg); Kumparan pengambil otomatisAuto Take Up: StandarUkuran Media Yang Didukung: Lebar Kertas Gulung: 11,8" (300 mm) hingga 64" (1626 mm)Metode Umpan Kertas: Friction FeedHeaters: Prapemanas dan Pemanas Pelat (30 hingga 50°C); Setelah Pemanasan (30 hingga 55°C)Paper Path: Roll (Single Roll)

Konsumsi Daya:

Utility Software (Web delivery): Windows – Epson Edge Print PRO, Epson Edge Dashboard, Epson Edge Color, Epson Device Admin, Software Updater, Firmware Updater

Sistem Pasokan Tinta:

Umur Tinta: 2 tahun dari tanggal produksi dicetak atau 6 bulan setelah dibuka

Area yang Dapat Dicetak dan Akurasi:

Lebar Kertas Maksimum: 1626 mm (64")Minimum Paper Width: 300 mm (11.8")Maximum Printable Length: Dibatasi oleh aplikasi perangkat lunak, sistem operasi, panjang media, dan RIP yang digunakan

Recommended System Requirements:

Win PC System Requirement: Windows 8.1/ 10/ 11 (x64)
CPU: Intel Core i3 3.0GHz or faster
Memory: 8GB or more
Storage: 50GB or moreMac System Requirements: Mac OS 10.7 or later

Dimensi Dan Berat:

Berat: Approx. 278kgDimensions: Printing (without Additional Print Drying System): 2,620 x 912 x 1,338mm (W x D x H)
Printing (with Additional Print Drying System): 2,620 x 989 x 1,338mm (W x D x H)
Stowed (without Additional Print Drying System): 2,620 x 880 x 1,338mm (W x D x H)
Stowed (with Additional Print Drying System): 2,620 x 989 x 1,338mm (W x D x H)

See Full Specs Hide Full Specs

Print All Specs
