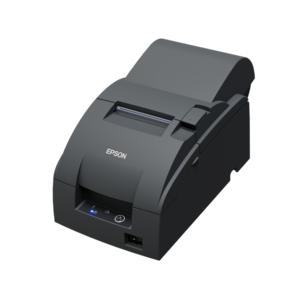

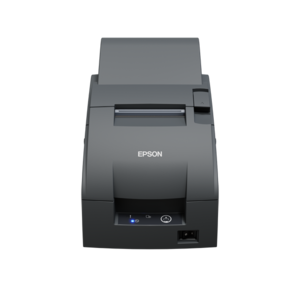

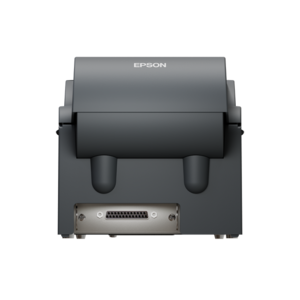

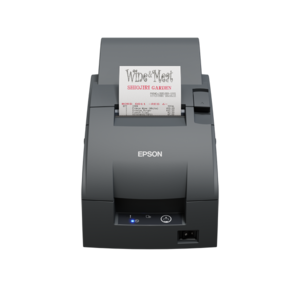

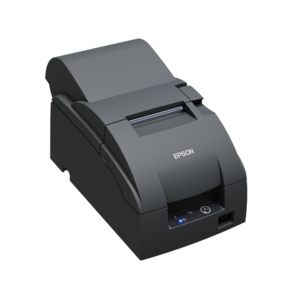

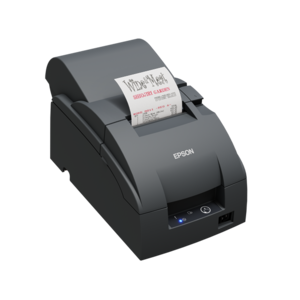

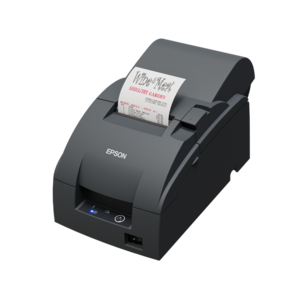

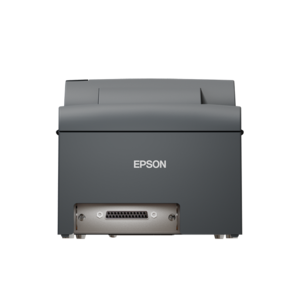

Epson TM-U220IIA Impact Dot Matrix Receipt Printer

The Reliable Printer for Seamless POS Operations and Efficient Transaction Processing

The Epson Dot Matrix TM-U220II series offers three flexible models – Type A with journey printing and auto cutter, Type B with auto cutter, and Type D with manual cutter – designed to meet the demands of high-traffic F&B and Retail environments. Designed for easy setup and high productivity, these printers deliver fast print speeds of up to 6.0 ips and support various UIB interfaces. Their efficient receipt printing and easy paper loading simplify setup and streamline POS operations, ensuring stable performance and resilience in demanding environments.

Printer mechanism lifespan of up to 7.5 million lines and
an auto cutter* durability of up to 800,000 cuts.
Multiple interface options, including USB, Serial, Ethernet,
Parallel, and optional Wi-Fi dongle^ compatibility.
Compatible with the optional OT-BZ20 buzzer via the drawer kick port, ideal for kitchen use.

Find Accessories Support

Overview

Engineered for reliability
Proven robust enclosure and long component lives; backed by 2-year standard warranty, including printhead

Flexible installation
Wall-mount options with right-side up printing for easy reading in all orientations

Support journey paper printing¹
Enabling the storage of historical sales transactions for tracking and reporting purposes

Increase productivity
Fast print speed of up to 6.0 lines per second on two-ply paper

Specifications

Print Font:

Font: Font A: 9 x 9
Font B: 7 x 9 (Default)Karakter Per Inci: 17.8 cpi / 16 cpi or 14.5 cpi / 13.3 cpiUkuran Karakter (L x T): 1.2 mm x 3.1 mm or 1.6 mm x 3.1 mmSet Karakter: 95 Alphanumeric, 48 International, Extended Graphics: 128 x 12 pages

Kecepatan Cetak:

Default Foto - 10 x 15 cm / 4 x 6 "^*2: Sekitar 42 detik per Foto (dengan Tepi) ^*1Draf, A4 (Hitam / Warna): Hingga 32 ppm/20 ppm ^*1ISO 24734, A4 Simpleks (Hitam / Warna): Hingga 18 ipm/10 ipm ^*1ISO 24734, A4 Dupleks (Hitam / Warna): Hingga 8,7 ipm/6,0 ipm ^*1ISO 24734.2, A3 Simpleks (Hitam / Warna): Hingga 10 ipm/5 ipm ^*1ISO 24734.2, A3 Dupleks (Hitam / Warna): Hingga 6,0 ipm/3,7 ipm ^*1Kecepatan Cetak: 4.7 ips (at 40 columns, 16 cpi), 6.0 lps (at 30 column, 16 cpi)

Paper:

Kertas Gulung: 76.0 ± 0.5 mm (W) x Dia. 83 mm
69.5 ± 0.5 mm (W) x Dia. 83 mmKapasitas Kertas: 1 origin + 1 copy

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H): 160 x 286 x 157.5 mm

Dot Density:

Dot Density: 180 dpi x 180 dpi

Dimensi Dan Berat:

Dimensi Keseluruhan (L x D x T): 666 x 486 x 418 mmBerat: 23kg

Antarmuka:

USB: Hi-Speed USB 2.0Jaringan: Ethernet,Wi-Fi IEEE 802.11 b/g/n,Wi-Fi DirectProtokol Jaringan: TCP/IPv4, TCP/IPv6, LPD, IPP, PORT9100, WSDProtokol Manajemen Jaringan: SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SNTP, SLP, WSD, LLTDFungsi Keamanan: Buku Alamat LDAP, Mode Admin PanelInterface Model: RS-232C, Bi-directional Parallel, Dealer Option: USB, 10-Base-T I/F

Reliabilitas:

MTBF: 180,000 hoursMCBF: 18 million linesPrinter Mechanism Life: 7.5 million linesAuto Cutter Life: 800,000 cuts (Type-A and Type-B only)

Weight:

Berat: Approx. 2.7 kg

Tipe Printer:

Tipe Printer: Cetak, Pindai, Salin, Faks dengan ADF

Daya:

Konsumsi Daya: Operating : Approx. 22.8 W (Mean)
Standby : Approx. 1.2 W (Mean)
Power Supply : AC Adapter Type-C (Built-in)Pasokan Tegangan: DC 24V ± 7%

Receive Data Buffer:

Receive Data Buffer: 4 KB or 40 Bytes

Sistem Operasi dan Aplikasi yang Didukung:

Operasi Yang Didukung: Windows XP/XP Profesional x 64 Edition/Vista/7/8/8.1/10
Hanya fungsi pencetakan dan pemindaian yang didukung untuk Sistem Operasi Windows Server
Windows Server 2003/2003 x 64 Edition/2003 R2/2003 R2 x 64 Edition/2008/2008 R2/2012/2012 R2/2016
Mac OS X 10.6.8 atau lebih baru

Print Method:

Metode Cetak: 9-Pin Serial Impact Dot Matrix

Two Colour Printing:

Two Colour Printing: Yes

Auto Cutter:

Auto Cutter: Yes

Winding Device for Journey Paper Printing:

Winding Device for Journey Paper Printing: Yes

Wall Hanging Install:

Wall Hanging Install: No

Ribbon Cassette:

Ribbon Cassette: ERC-38B/R (Black: 1.5 million characters, Red: 750,000 characters)
ERC-38B (Black: 3 million characters)

Solusi Mobile dan Cloud:

Fitur Epson Connect: Epson iPrint, Epson Email Print, Remote Print Driver, Scan to CloudSolusi Mobile Lainnya: Google Cloud Print

Tingkat Kebisingan:

Pencetakan PC / Foto Terbaik PGPP: 5.8 B(A), 44 dB(A)Pencetakan PC / Default Kertas Polos ^*3: 6.4 B(A), 48 dB(A)

Penanganan Kertas:

Metode Umpan Kertas: Umpan gesekanJumlah Baki Kertas: 3 (Depan 2, Belakang 1)Kapasitas Input Kertas Standar: Kaset 2: Hingga 250 lembar, Kertas Polos A4 (80g/m²)
Slot Belakang: 1 lembar
Kaset 1: Hingga 250 lembar, Kertas Polos A4 (80 g/m²), 20 lembar, Kertas Foto Glossy PremiumKapasitas Output: 125 lembar, Kertas Polos A4, 20 lembar, Kertas Foto Glossy PremiumUkuran Kertas Maksimum: 329 x 1200 mm (12.95 x 47.24 ")Ukuran Kertas: A3+, A3, A4, A5, A6, B4, B5, Legal, Letter, Half Letter, 5 x 7 ", 4 x 6 ", 3,5 x 5 ", Amplop: #10, DL, C6, C4Margin Cetak: 3 mm atas, kiri, kanan, Bawah melalui pengaturan khusus pada Driver printer

See Full Specs Hide Full Specs

Print All Specs
