Moverio BT-35E Smart Glasses

Product Models displayed on this website may be available in certain regions only.

Transparent wearable display supporting content from popular devices.

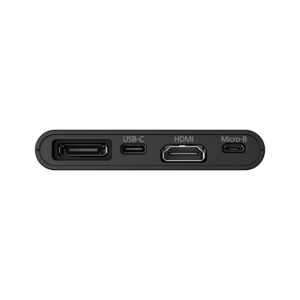

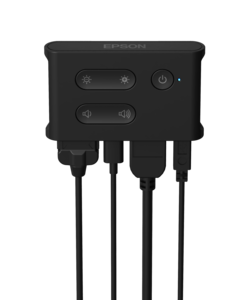

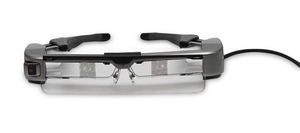

Seamlessly blend digital content into the outside world with the Moverio BT-35E smart glasses, featuring an interface unit with HDMI® and USB Type-C ports to connect to popular output devices. It’s like having a wearable second screen, while still seeing the surrounding environment via the transparent HD display. Offering an easy out-of-box experience, the BT-35E connects to virtually any device ― no need for special software. And, its interface does not require an external power source when used with a compatible USB Type-C output device. Ideal for use with commercial drones, third-party camera systems and Android™ mobile devices1, the BT-35E easily accommodates different head sizes.


Moverio smart glasses are designed to change how users experience the world around them. Continuing to set the standard in augmented reality, Epson offers a comprehensive line of innovative products, plus a growing ecosystem of partners.

  • Seamlessly blend digital content into the outside world — binocular, highly transparent Si-OLED HD wearable display that gives users a second-screen experience.
  • Compatible with popular devices — works with HDMI 1.4 and USB Type-C output devices, including Android mobile devices1.
  • Simple, out-of-the-box setup — intuitive interface unit; easy plug-and-play operation.
  • No external power source required (USB Type-C) — interface also supports external power packs, via micro USB port.
  • Innovative design — flexible, hinge-based headset accommodates a wide range of head sizes; comfortable fit; durable enough for daily use.
  • Dual (binocular) displays — each lens has its own display, in your field of vision, projected into your surroundings; ideal for stereoscopic 3D content.
  • ANSI certified protective shield — ANSI Z87.1 safety-glass compliant.
  • Supports HDCP 1.4 for copyright protection — enables access to protected content.

What's in the box:

AC Adaptor
Plug Attachment
USB Cable
Carrying Case
Belt Clip Screw
Cable Retainer
Belt Clip
Clip-on Shade x 1 (Dark)
Quick Setup Guide
User Manual

Wearable Device Details:

Model Type: See -Through Binocular Smart Glasses


Display Device Type: Si-OLED (Silicon - Organic Light-Emitting Diode)Driving Method: Mono Crystalline Silicon Active MatrixRefresh Rate: 30 HzField of View: 23 ° (Diagonal)Screen Size (Projected Distance): 40 inch at 2.5 m - 320 inch at 20 mDisplay Size: 0.43 inch wide panel (16:9)Pixel Number: 921,600 pixels (1280 x 720)


Camera - Image Capturing: 5 MegapixelsCompass: Yes, 3 - Axis in HeadsetGyroscope: Yes, 3 - Axis in HeadsetAccelometer: Yes, 3 - Axis in HeadsetAmbient Light Sensor: Yes (10 - 30,000 Lux)

Sound Output:

Maximum Audio Output Level: Under 27 mV


Operating Temperature: 5 °C to 35 °C, 20 % to 80 % Humidity (No Condensation)Storage Temperature: -10 °C to 60 °C, 10 % to 90 % Humidity (No Condensation)Power Supply Voltage Interface Box: 5.0 V, 1.5 A (DC Input) via USB Micro-B, or 1.5 A via USB Type-CPower Supply Voltage AC Adapter: 100 - 240 V AC +/- 10%, 50 / 60 Hz with Micro USB CableWater Proof: Headset: Waterproof Against Light Rain (IP x 2)


USB Interface: USB Type CAudio Jack: 3.5 φ 4 Pole Mini-jack, CTIA Type

Dimensions and Weight:

Dimensions (W x D x H): Headset: 193 x 189 x 30 mm (Without Shade)
Interface Box: 85 x 52 x 15 mmWeight: Headset: 119 g (Without Shade, Harness)
Interface Box: 45 g (Without Belt and Cable Retainer)


Options: Glasses Strap, Carrying Case

Video Input:

HDMI Type A: HDMI: ver. 1.4
Resolution: 1920 x 1080 @ 60Hz / 59.94Hz, 1280 x 720 @ 60Hz / 59.94Hz, 1280 x 720 @ 30Hz, 640 x 480 @ 60Hz
HDCP: ver. 1.4
EDID: Supported
Audio Codec: LPCM (32 kHz, 44.1 kHz, 48 kHz)USB Type-C: Video I/F: DisplayPort Alternate Mode (DP Alt Mode)
DisplayPort: ver. 1.2
Resolution: 1920 x 1080 @ 60Hz / 59.94Hz, 1280 x 720 @ 60Hz / 59.94Hz, 1280 x 720 @ 30Hz, 640 x 480 @ 60Hz
Audio Codec: LPCM (32 kHz, 44.1 kHz, 48 kHz)
EDID: Supported
HDCP: ver. 1.3


1 Android mobile devices supporting DisplayPort Alt Mode over USB Type-C.
