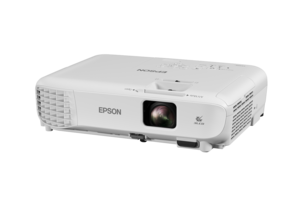

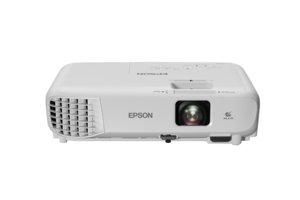

Epson EB-W06 WXGA 3LCD Projector

Larger, Sharper, More Impactful Viewing Experience.

Increase collaboration in the classroom with the EB-W06 projector. Designed to maximize engagement and enrich lesson plans, this powerful WXGA projector delivers eye-catching, widescreen displays with 3,700 lumens of color and white brightness. A convenient, durable addition to any learning environment, it also offers a long lamp life up to 12,000 hours in ECO Mode and includes HDMI ports for easy connectivity to a variety of high-definition AV devices.

Where to Buy

Find Accessories Support

Overview

Higher resolution quality
WXGA quality projection ensures that content is shared without distortion and any image quality loss.

Bigger projections
When you are looking for bigger display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.

Split Screen Function for Wired / Non-wired Devices
A split screen function enables the simultaneous projection of two images from separate devices through both wired and wireless connections on a single screen, eliminating the need for a second projector. Classroom lessons and business meetings can now be more engaging by connecting the projector with a document camera and a PC or tablet.

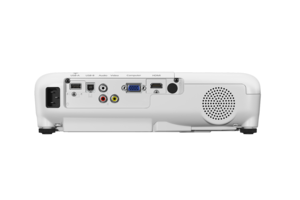

Various Interfaces

Epson business projectors support a wide range of connectivity options including HDMI, VGA, and USB. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

Specifications

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

**Brightness^*1:**

White Light Output (Normal/Eco): 3,700 lmColour Light Output: 3,700 lm

Connectivity:

USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network: Wireless: Optional (ELPAP11) Analog Input: Composite: 1 RCA
D-Sub 15pin: 1Digital Input: HDMI: 1Audio Input: 2RCA (White & Red): 1

Contrast Ratio:

Contrast Ratio: 16,000:1

Screen Size (Projected Distance):

Standard Size: Tele: 33” to 320” [1.10 to 10.89 m]
Wide: 33” to 320” [0.91 to 9.07 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)Quick Corner: Yes

Operating Temperature:

Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude: 0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 302 x 77 x 234 mm

Weight:

Weight: Approx. 2.5 kg

Air Filter:

Type: High Efficiency FilterMaintenance Cycle: 6,000 / 12,000 hours^*3

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 28dB

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Start Up Period:

Start Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Projectors Facets:

Features, Projectors Facets: Wifi
Quick CornerLaser / Lamp, Projectors Facets: LampResolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: 16,000:1Brightness Range Lumens, Projectors Facets: 2000

Optional Wireless Specifications:

Supported Speed for Each Mode : IEEE 802.11n (2.4GHz): 72.2 Mbps^*2
IEEE 802.11g (2.4GHz): 54 Mbps^*2
IEEE 802.11n (5GHz): 150 Mbps^*2
IEEE 802.11b (2.4GHz): 11 Mbps^*2
IEEE 802.11a (5GHz): 54Mbps^*2Wireless LAN Security: Access Point: OPEN, WPA2-PSK (AES)
Infrastructure: OPEN, WPA2/WPA3-PSK

Specifications of Main Parts:

LCD: Size: 0.59” (C2fine)
Native Resolution: WXGA (1280 x 800)Light Source: Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio: 16:10Projection Lens: Zoom Ratio: 1 – 1.2
Focal Length: 16.90 – 20.28 mm
Throw Ratio: 1.30 – 1.56 (Wide to Tele)
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.72

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Notes:

^*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

^*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

^*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3 ). Based on the Epson’s in-house test results
