Powerful, compact WUXGA laser projector with 6,000 lumens plus lens shift.

The compact, affordable EB-L610U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,000 lumens colour/white brightness1. This wireless projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours5. And, it offers virtually maintenance-free operation for the life of the optical engine6. Plus, it features a Dynamic contrast ratio of up to 2,500,000:1. It also includes manual lens shift, wireless networking with enterprise-level security, and advanced installation features.

  • 6,000 lumens colour/white brightness1
  • WUXGA; up to 2,500,000:1 Dynamic contrast ratio
  • Laser light source of up to 20,000 hours5
  • Screen mirroring function
  • Up to ±50% vertical, ±20% horizontal lens shift



Download CAD Drawing



Where to Buy
Support
Bright, Vivid Colour
6,000 lumens colour / white brightness1.
Breakthrough Laser Technology
features a laser light source of up to 20,000 hours5; plus, Instant ON/OFF.
Flexible Installation
up to ±50 percent vertical and ±20 percent horizontal manual lens shift.
  1. Bright, vivid colour — 6,000 lumens colour/white brightness1.
  2. WUXGA, widescreen images up to 500" — WUXGA resolution (1920 x 1200); Full HD 1080p support.
  3. Breakthrough laser technology — features a laser light source of up to 20,000 hours5; plus, Instant ON/OFF.
  4. Virtually maintenance-free operation — for the life of the optical engine6.
  5. Extraordinary sharpness and detail — up to 2,500,000:1 Dynamic contrast ratio.
  6. Flexible installation — up to ±50 percent vertical and ±20 percent horizontal manual lens shift.
  7. Integrated wireless networking with enterprise-level security — plus wireless content. sharing with Epson iProjection™ 7; and wireless mirroring for Android™/Windows® 8.1+ devices, or AirPlay® for iOS® devices (requires Apple TV®).
  8. Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more.

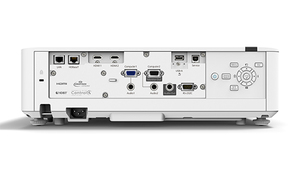

  9. Robust connectivity — supports HDBaseT™, 2x HDMI®, VGA, RJ-45, stereo mini and control management tools.
  10. Constant Brightness Mode8 — fine-tune the brightness setting to help maximise run time.
Better Products for a Better Future™
For more information on Epson’s environmental programmes, visit http://global.epson.com/SR/environment



What's in the box:

Power Cable: 3m only
Remote Control with 2 x AA Battery
Cable Cover
Quick Start Guide Printed
CD (PDF)
VGA Cable: 1.8m

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Brightness:

White Light Output (Normal / Extended): 6,000lm / 4,200lm *1Colour Light Output: 6,000lm *1

Connectivity:

Network: Wired Lan: RJ45 x 1
Wireless: Built InAnalog Input: D-Sub 15Pin: 2
HDMI: 2
HDbaseT: RJ45 x 1Output Terminal: D-Sub 15Pin: 1 Shared with Computer 2Audio Input: Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type B: 1 (for Mouse, K/B, Control, Firmware Update)
USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update, Contents Playback, Copy OSD Settings)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Screen Size (Projected Distance):

Zoom : Wide: 50” - 500” [1.44 - 14.76 m]Zoom : Tele: 50” - 500” [2.35 - 23.84 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°Auto Keystone: YesQuick Corner: YesArc Correction: Yes

Operating Temperature:

Operating Temperature: 0 - 45 °C <32 - 113 °F> (Below 1,500m / 4,921ft)
0 - 40 °C <32 - 104 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]
(20% - 80% humidity, no condensation)

Operating Altitude:

Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:

Start-Up Period: Less than 7 seconds, Warm-up Period: 30 seconds
Quick Start: Less than 5 seconds (display)

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 10W Monaural

Direct Power On/Off:

Direct Power On/Off: Yes

Weight:

Weight: Approx. 8.5kg

Air Filter:

Type: High Efficiency FilterMaintenance Cycle: (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hours

Fan Noise:

Fan Noise (Normal / Eco): 38dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 304 x 440 x 120 mm

Optional Wireless & Built In Lan Specifications:

Supported Speed: IEEE 802.11b (2.4GHz): 11 Mbps
IEEE 802.11n (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 65 Mbps
IEEE 802.11a (5GHz): 54 Mbps
IEEE 802.11n (5GHz): 65 MbpsSupported Security Type: Quick Mode: Open, WPA2-PSK
Advanced Mode: Open, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode: Infrastructure, Access Point

Projectors Facets:

Features, Projectors Facets: Wifi
Screen Mirroring
Quick CornerLaser / Lamp, Projectors Facets: LaserResolution, Projectors Facets: WUXGAContrast Ratio, Projectors Facets: Over 2,500,000:1Brightness Range Lumens, Projectors Facets: 4001

Power:

Power Consumption: (Normal / Quiet / Extended): 322W / 244W / 244WPower Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

Laser Diode: (Normal / Quiet / Extended): 353W / 265W / 265WStandby: (Network / Energy Saving): 2.0W / 0.3W

Wireless Specifications (Screen Mirroring):

Supported Speed: IEEE 802.11g (2.4GHz): 54Mbps*2
IEEE 802.11n (2.4GHz): 130 Mbps*2
IEEE 802.11a (5GHz): 54 Mbps*2
IEEE 802.11n (5GHz): 270 Mbps*2
IEEE 802.11ac (5GHz): 780 Mbps*2Supported Security Type: WPA2-PSK (AES)Supported Connection Mode: Wi-Fi Direct

Specifications of Main Parts:

LCD: Size: 0.67” (D10 C2fine)
Native Resolution: WUXGA (1920 x 1200)Light Source: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hoursProjection Lens: Lens Shift, Type: Manual
Horizontal (Left/Right): -20%
Type: Optical Zoom (Manual) / Focus (Manual)
Focal Length: 20.0 - 31.8mm
Zoom Ratio: 1-1.6
Throw Ratio: 1.35 - 2.20 (Wide to Tele)
F-Number: 1.5 - 1.7
Vertical (Up/Down): -50%
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.

*5 20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 3 years.

*6 Life of the optical engine may vary depending on mode and usage environment. The projector has a standard limited warranty of 3 years.

*7 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

*8 Color light output and white light output (lumens) in Constant Brightness Mode can be lower than the maximum output achievable when the Constant Brightness Mode is off. Actual run time may vary depending on environmental conditions, usage and settings.
