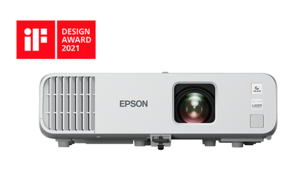

Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless

Zoom In
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L200W 3LCD WXGA Standard-Throw Laser Projector with Built-in Wireless

Display large, bright images for optimal viewability with this reliable laser projector.

Promote collaboration in classrooms and offices with the versatile EB-L200W standard-throw laser projector. Featuring a virtually maintenance-free 20,000-hour laser light source with no lamps to replace*7, the EB-L200W offers convenient, reliable performance at an exceptional value. Providing 4,200 lumens of brightness*1 and astounding WXGA (16:10) resolution, the flexible EB-L200W delivers colorful, easy-to-read, widescreen images from nearly anywhere in the classroom. Plus, it arrives with a variety of features to maximize engagement, including a powerful 16W speaker and built-in wireless and Miracast® support for convenient content sharing from laptops and smart devices.

  • 4,200 lumens of color and white brightness*1
  • 20,000-hour laser light source with no lamps*7
  • Native WXGA (16:10) resolution
  • Built-in Miracast
  • Built-in wireless LAN
  • 1.6x optical zoom



Where to Buy
Find Accessories Support
Bright and Compact
Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the L200 series is now more compact yet producing bright and sharp images. Thanks to the new heatsink design, the L200 series has good heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.





Quality Resolution,  Compelling Audience Engagement
The WXGA resolution of the EB-L200W laser projector ensures sharp text and vivid images with a wide aspect ratio to effectively capture the viewer’s attention.





Cost Effective
Epson’s unique laser technology sees the L200 series having 20,000 hours*7 of maintenance-free laser light source. Users can share their content with confidence, thanks to the innovative fixed phosphor unit, giving your devices durability and long-lasting life.






Built-in Connectivity
Project directly from your smart devices with built-in Wi-Fi through iProjection as well as Miracast without installing extra drivers.



What's in the box:

Power Cable: 1.8m x 1

HDMI Cable (1.8m)

Remote Control with 2x AA Battery

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Brightness:

White Light Output (Normal / Eco): 4,200lm / 2,940lmColour Light Output: 4,200lm

Connectivity:

Network: Wireless:
Built-in x 1
Optional x 1 (using optional ELPAP11)
Wired Lan:
RJ45 x 1 (100Mbps)Analog Input: D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.2)Analog Output Terminal: D-Sub 15Pin: 1 (Black)Audio Input: RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 1 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings, Document Camera)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Mic I/O: Stereo Mini x 1

Contrast Ratio:

Contrast Ratio: Over 2,500,000 : 1

Screen Size (Projected Distance):

Zoom : Wide: 29” to 282” screen (85 – 851cm)Standard Size: 60” screen @ 179cm

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30°Quick Corner: Yes (Manual

Operating Temperature:

Single Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No CondensationMulti-projection Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [32 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 30 °C [32 °F - 86 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds
Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 16W Monoaural

Direct Power On/Off:

Direct Power On/Off: Yes

Weight:

Weight: Approx. 4.1kg

Air Filter:

Type: Electrostatic FilterMaintenance Cycle: 20,000 hours*5

Fan Noise:

Fan Noise (Normal / Eco): 36dB / 26dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 299 x 325 x 90 mm

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*3, IEEE 802.11g (2.4GHz): 54Mbps*3 IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*3, IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3Wireless LAN Security: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)

Image:

Noise Reduction: YesSuper-Resolution: YesDetail Enhancement: Yes

Projectors Facets:

Features, Projectors Facets: Wifi
Screen Mirroring
Quick CornerLaser / Lamp, Projectors Facets: LaserResolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: Over 2,500,000:1Brightness Range Lumens, Projectors Facets: 4001

Power Consumption (220-240V):

Lamp On (Normal/Eco): 254W / 193WStandby: 2.0W / 0.5W (Network On / Off)

Specifications of Main Parts:

LCD: Size: 0.59” (C2Fine)
Resolution: WXGA (1280 x 800)Light Source: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.99
Focal Length: 18.2 – 29.2mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.38 – 2.24
See Full Specs Hide Full Specs
Print All Specs

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4;

white light output measured in accordance with ISO 21118.

*2 With the built-in wireless mode, users can connect the device directly to the projector while with the additional ELPAP11, it is possible to connect the device not only directly to the projector but as well as via a network infrastructure.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When environmental temperature becomes high, the brightness becomes dark automatically.

*5 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.

*6 Split Screen feature requires remote control. Consult your user manual for input combinations.

*7 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
