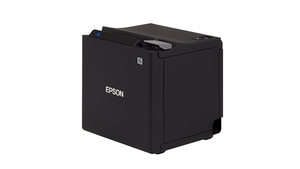

Epson TM-m10 USB/Ethernet Thermal POS Receipt Printer

CONNECT SEAMLESSLY WITH TABLET POS SOLUTIONS.

Reduce space consumption with the Epson TM-m10 printer, which is especially ideal for environments with space constraints. This sleek 2-inch receipt printer is one of the smallest in its line-up, with the flexibility of configuration (top or front load). The TM-m10 printer integrates seamlessly with a wide variety of platforms – iOS, Android™, and Windows operating systems. You can now focus on growing your business while we take care of the details.

Stylish compact
Paper Width: 57.5mm ± 0.5 (W) x Dia.60mm (max)
Print Speed: max. 150mm/sec
Multi-interface connectivity (USB and Ethernet with NFC / QR Code pairing) designed for Tablet POS)

Support

Overview

Stylishly Compact
Available in black, this sleek and stylish printer is perfect for any environment – even in limited spaces.

Versatile Connectivity
Quick and simple setups with a wide variety of platforms that include iOS, Android™, and Windows operating systems through USB or Ethernet with NFC / QR Code pairing.

Flexible Configuration
Option of front or top access is available with the breakthrough of its interchangeable outer casing.

Specifications

General Information:

Printer Driver: ePOS-SDK, Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux), TM Virtual Port Driver, CUPS Driver (Linux), Mac DriverAudible Alert: External Buzzer (Option)Sensors: Paper End, Cover OpenLED Indicators: Blue LED - On = Power
Orange LED - Error and/or Paper OutSoftware: TM Utility (iOS, Android), TM-m10 Utility (Windows Desktop), EpsonNet Config (Win, Mac), Deployment Tool, Monitoring Tool, TM-Print Assistant (Ethernet Model Only)

Print Font:

Font: ANK Font A: 12 × 24 (Default); ANK Font B: 10 × 24; Kanji Font: 24 x 24Character Size (mm): ANK Font A: 1.25 × 3 (Default); ANK Font B: 1.13 × 3; Kanji Font: 3 x 3Character Set: 95 Alphanumeric, 18 International, 128 x 43 Extended Graphics
Thai/Viet Font / Simplified Chinese FontBarcode / 2D Symbol Printing: UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar
PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology

Paper:

Dimensions (mm): Roll paper: 57.5mm ± 0.5 (W) x Dia.60mm (max)

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H): 102 x 102 x 102 mm

Colour:

Colour: Epson Black (EBCK)

Printing Method:

Printing Method: Thermal line printing

Dot / Line:

Dot / Line: 420 dots

Mass:

Mass: 0.9kg (1.98lb)

Standard Accessories:

Standard Accessories ROM: Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, Power switch cover, External power supply

Dot Density:

Dot Density: 203 x 203 dpi

Easy Setting:

Easy Setting: NFC and QRCode pairing (for Ethernet model only)

Interfaces:

Interfaces: Built-in USB + Ethernet 10/100Base-T/TX (C31CE74322)
Built-in USB (C31CE74302)

Reliability:

MTBF: 360,000 hoursMCBF: 60 million linesPrinter Mechanism Life: 15 million linesAuto Cutter Life: 1 million cuts

Power:

Power Consumption: Operating: Approx. 1.5 A (mean)Supply Voltage: DC + 24 V ± 7 %

Receive Data Buffer:

Receive Data Buffer: 4 KB / 45 Bytes

Options:

Options: External Buzzer (OT-BZ20)

Printing:

Print Speed: 150mm/s (Maximum)

General:

Humidity: 10 - 90 % RHOperating Temperature: 5 - 45 ° C (41 - 113 ° F)
