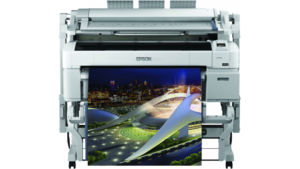

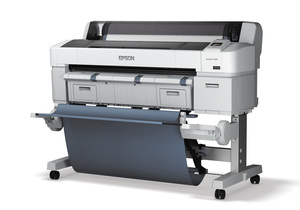

Epson SureColor SC-T5270 Technical Printer

Product Models displayed on this website may be available in certain regions only.

No margin for error? Print with precision and confidence

Designed with the engineering profession in mind,the Epson SureColor SC-T5270 series ensures that you are empowered to print what you think with stunning quality and precision. Available in dual-roll and multifunction configurations,the SureColor SC-T5270 series is designed to maximize productivity

    • 36-inch Large Format Printer
      Durable and vibrant printouts with Epson all-pigment UltraChrome XD Ink
      Outstanding speeds of up to 2 A1 prints per minute
      Available in single-roll, dual-roll and multi-function configurations



Highly Productive

  • Print documents at outstanding speeds of up to 2 A1 prints per minute, effectively assisting you in meeting deadlines and ensuring smooth business operations
  • Minimise downtime and save paper with automatic dual roll media design with the dual-roll models
  • Scan and share over the network or via e-mail, and even store files directly into your document management system with the multi-function models to smoothen workflow and increase workplace productivity
  • Unparalleled Versatility
    Produce a variety of prints with impeccable precision on a range of substrates, including 1.5mm thickboards. From architectural plans to maps and 3D renderings, print your required documents with confidence.

    Remarkable Archivability
    Produce prints that are durable enough to withstand elemental challenges with Epson’s all-pigment UltraChrome XD ink, which has a higher ink penetration on paper, providing you with tested high lightfastness, rub and water-resistant prints, ensuring that your prints can go anywhere you need them to.

    Economical and Cost-effective
    Enjoy competitive cost-per-page and cartridges sizes from 110ml to 700ml to suit different printing volume needs.

    Comprehensive Options for Future Expansion
    The SureColor T-5270 series can be tailored to suit your business requirements as it grows. Options available include internal 320GB HDD print server, Adobe® PostScrip® 3 Expansion Unit, 36"" MFP scanner and additional roll media adapter.

    1. 320GB HDD
    Internal 320 GB print server which can be managed remotely, and allows for print jobs to be saved and reprinted

    2. Adobe® PostScrip® 3 Expansion Unit
    Internal 320 GB print server that supports Hot-Folder batch printing and easily integrates into the most complex workflows, including support for secure PDF printing

    3. 36"" MFP Scanner
    Scan assorted media up to 1.3mm thick directly into your 320GB HDD. Free to transfer the image to another SureColor™ SC-T5270 series printers, send it to a recipient via e-mail, or store the image on your workspace shared folder or CIFS.

    Print:


    Printing Technology: PrecisionCore™ TFP® Print Head
    10-channel, drop-on-demand, inkjet print head
    Variable-Sized Droplet Technology
    Auto-switching between Photo Black and Matte Black Maximum Print Resolution: Up to 2880 x 1440 dpiPrint Speed: Approx. 28 sec /A1 Speed mode(w/cut)Nozzle Configuration: 360 x 2 nozzles each colour (x5)

    Ink:


    Ink Type: UltraChrome® XD InkInk Configuration: C, M, Y, MK, PKReplacement Ink: Cyan T692100 (110 ml), T693200 (350 ml), T694200 (700 ml)Replacement Ink Cartridges: Cyan, Magenta, Yellow, Matte Black, Photo Black (110 ml, 350 ml, 700 ml)

    Printable Area and Accuracy:


    Maximum Paper Width: 914 mm (36")Minimum Cut-sheet Size: A4Minimum Paper Width: Roll: 254mm (10")
    Sheet: 210mm (8.27")Line Accuracy: 0.02mm with +/-0.1% accuracyMaximum Printable Length: Limited by software application, operating system, media length and RIP used

    Sheet Media Handling:


    Sheet Loading: Single Sheet Top-loadingThickness: 0.08mm to 1.5mmMaximum Paper Width: up to 914 mm (36")Left/Right Margins: 3mm each side

    Roll Media Handling:


    Media Width: 10" (254 mm) to 36" (914 mm )Media Thickness: 0.08 to 0.50 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: up to 150 mmRoll Paper Remaining: The remaining amount is managed by the barcode print on Roll paperAuto-Cutter: StandardLeft/Right Margins: 3mm each side

    General:


    Operating Systems: Linux, Windows XP/Vista/7/8/8.1 (32/64bit) or later, Mac OS 10.5.8 or later, Windows Server 2003/2008 (32/64bit), Windows Server 2008 R2 / 2012 R2 / 2012 (64bit)

    Printer Details:


    Printer Language: ESC/P Raster, HP-GL/2 & HP RTL, Optional Adobe® Postscript® 3™Software Included:Bundled Software:
    LFP Print Plug-In for Office
    LFP RemotePanel 2
    EpsonNet Setup
    EpsonNet Config
    EpsonNet Print (Windows only)
    Remote Manager (Access via browser)
    Copy Manager (Access via browser)

    Web Download Software:
    LFP Accounting Tool
    Epson LFP HDD UtilityInterfaces: Hi-Speed USB 2.0, Ethernet 10 BASE-T / 100BASE-TX / 1000BASE-T (with support for TCP/IP IPv4 and IPv6, Apple® Bonjour®, FTP, WSD, RAW IP, LPD, IPSec, SSL/TLS, and IEEE802.1X authentication protocols)

    Power:


    Rated Voltage: AC 100-240 VRated Frequency: 50-60 HzPower Consumption: Operating: Approx. 60W (T5270) / 61W (T5270D)
    Standby Approx. 16W (T5270) / 17W (T5270D)
    Sleep: Less than 3W
    Power Off: Less than 0.5WRated Current: 0.5 to 1.0APower Supply Voltage: AC 100-240 V

    Paper Handling:


    Media Handling:Single Roll Model
    Roll Paper: One Roll, Top-loading
    Cut Sheet: Top-loading single sheet and front-loading single sheet for thick board

    Dual Roll Model
    Roll Paper: Two Rolls, Top-loading & Front-loading
    Cut Sheet: Top-loading single sheet and front-loading single sheet for thick boardSupported Media Sizes: Roll Paper Width: 10" (254mm) to 36" (914mm)
    Cut Sheet Width: A4 (210mm) to 36" (914mm)
    Cut Sheet Length: 279.4mm to 1580mmBorderless Sizes: Cut Sheet: A3+, A1, A1+, A0, A0+, US C (17 x 22"), B2, B1, 10 x 12", 16 x 20", 24 x 30", 36 x 44", 30 x 40 cm
    Roll Paper: 10"/254mm, 11.8"/300mm, A3+/13"/329mm, 16"/406mm, US C/17"/432mm, B2/515mm, A1/594mm, 24"/610mm, B1/728mm, A0/ 841mm, 36"/914mm
