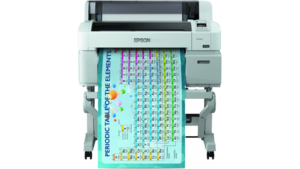

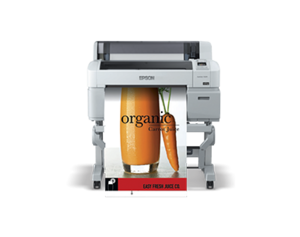

Epson SureColor SC-T3270 Technical Printer

Product Models displayed on this website may be available in certain regions only.

No margin for error? Print with precision and confidence

Designed with the engineering profession in mind, the Epson SureColor SC-T3270 ensures that you are empowered to print what you think with stunning quality and precision.

    • 24-inch Large Format Printer
      Durable and vibrant printouts with Epson all-pigment UltraChrome XD Ink
      Outstanding speeds of up to 2 A1 prints per minute



Exceptional Productivity Speed
Print documents at outstanding speeds* of up to 2 A1 prints per minute for CAD documents, effectively assisting you in meeting deadlines and ensuring smooth business operations..

* Based on A1 plain paper printed via Speed mode.

Unparalleled Versatility
Produce a variety of prints with impeccable precision on a range of substrates, including 1.5mm thickboards. From architectural plans to maps and 3D renderings, print your required documents with confidence.

Remarkable Archivability
Produce prints that are durable enough to withstand elemental challenges with Epson’s all-pigment UltraChrome XD ink, which has a higher ink penetration on paper, providing you with tested high lightfastness, rub and water-resistant prints, ensuring that your prints can go anywhere you need them to.

Economical and Cost-effective
Enjoy competitive cost-per-page and cartridges sizes from 110ml to 700ml to suit different printing volume needs.

Unrivalled Accessibility
The Epson SureColor T-Series features front access for all operations, allowing you to place it against a wall to free up more floor space for your other needs. This enables you to change paper settings and ink cartridges, and to operate the printer’s control panel, all from the front.

Print:


Printing Technology: PrecisionCore™ TFP® Print Head
10-channel, drop-on-demand, inkjet print head
Variable-Sized Droplet Technology
Auto-switching between Photo Black and Matte Black Maximum Print Resolution: Up to 2880 x 1440 dpiPrint Speed: Approx. 28 sec /A1 Speed mode(w/cut)Nozzle Configuration: 360 x 2 nozzles each colour (x5)

Ink:


Ink Type: UltraChrome® XD InkInk Configuration: C, M, Y, MK, PKReplacement Ink Cartridges: Cyan, Magenta, Yellow, Matte Black, Photo Black (110 ml, 350 ml, 700 ml)

Printable Area and Accuracy:


Maximum Paper Width: 610 mm (24")Minimum Cut-sheet Size: A4Minimum Paper Width: Roll: 254mm (10")
Sheet: 210mm (8.27")Line Accuracy: 0.02mm with +/-0.1% accuracyMaximum Printable Length: Limited by software application, operating system, media length and RIP used

Sheet Media Handling:


Sheet Loading: Single Sheet Top-loadingThickness: 0.08mm to 1.5mmMaximum Paper Width: up to 610 mm (24")Left/Right Margins: 3mm each side

Roll Media Handling:


Media Width: 10" (254 mm) to 24" (610 mm )Media Thickness: 0.08 to 0.50 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: up to 150 mmRoll Paper Remaining: The remaining amount is managed by the barcode print on Roll paperAuto-Cutter: StandardLeft/Right Margins: 3mm each side

General:


Operating Systems: Linux, Windows XP/Vista/7/8/8.1 (32/64bit) or later, Mac OS 10.5.8 or later, Windows Server 2003/2008 (32/64bit), Windows Server 2008 R2 / 2012 R2 / 2012 (64bit)

Printer Details:


Printer Language: ESC/P Raster, HP-GL/2 & HP RTL, Optional Adobe® Postscript® 3™Software Included:Bundled Software:
LFP Print Plug-In for Office
LFP RemotePanel 2
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)
Remote Manager (Access via browser)
Copy Manager (Access via browser)

Web Download Software:
LFP Accounting Tool
Epson LFP HDD UtilityInterfaces: Hi-Speed USB 2.0, Ethernet 10 BASE-T / 100BASE-TX / 1000BASE-T (with support for TCP/IP IPv4 and IPv6, Apple® Bonjour®, FTP, WSD, RAW IP, LPD, IPSec, SSL/TLS, and IEEE802.1X authentication protocols)

Power:


Rated Voltage: AC 100-240 VRated Frequency: 50-60 HzPower Consumption: Operating: Approx. 52W
Standby Approx. 16W
Sleep: Less than 3W
Power Off: Less than 0.5WRated Current: 0.5 to 1.0APower Supply Voltage: AC 100-240 V

Paper Handling:


Media Handling: Roll Paper: One Roll, Top-loading
Cut Sheet: Top-loading single sheet and front-loading single sheet for thick boardSupported Media Sizes: Roll Paper Width: 10" (254mm) to 24" (610mm)
Cut Sheet Width: A4 (210mm) to 24" (610mm)
Cut Sheet Length: 279.4mm to 1580mmBorderless Sizes: Cut Sheet: A3+, A1, A1+, US C (17 x 22"), B2, 10 x 12", 16 x 20", 24 x 30", 30 x 40 cm
Roll Paper: 10"/254mm, 11.8"/300mm, A3+/13"/329mm, 16"/406mm, US C/17"/432mm, B2/515mm, A1/594mm, 24"/610mm

Notes:

1 Print times are based upon print engine speeds only. Total throughput depends upon front-end driver/RIP, file size, printing resolution, ink coverage, network speed, etc.

2 Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use and temperature. For print quality, a variable amount of ink remains in the cartridge after the "replace cartridge" indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.

3 High-volume cutting of canvas and heavy media stocks may require frequent cutter replacement.

4 Allowed by printer driver for Mac® and PC. Application, version of application and operating system version may limit maximum length.
