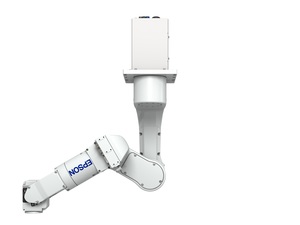

Epson Robot N2

New Folding Arm Design for Motion Flexibility in a Compact Space

N2 Series robots feature the world’s first 6-axis folding arm, enabling them to deliver outstanding performance in extremely limited space.

      • Handles payloads up to 2.5kg
      • Available with 450mm arm length
      • Slim new folding arm design
      • Requires only 600mm x 600mm installation space – 40% less than a C4 robot
      • Arm rotation enables shortcut access to workpiece from any direction





      For more information on other robot models, please download the range catalogue here

More compact than any other Epson 6-axis robot, the N2 Series offers maximum efficiency over the smallest footprint, and is extremely manoeuvrable thanks to its inwardly-oriented second axis.

High output, low space requirement
The N2 Series 6-axis robot can reach every part of its work cell with ease. This is thanks to a revolutionary kinematic geometry with a completely new folding arm which can cover the same active range as a robot with a significantly longer arm.

Extremely manoeuvrable
A traditional 6-axis robot must fully extend its arm for reorientation, which takes space and time. The N2 robot has a second axis oriented inwards, moving the centre of rotation downwards. This means the second axle shaft can travel through the zero position, 'hopping' from one side to the other. The Epson N2 Series can be controlled by the RC700-A controller. High-performing and versatile, it's just as capable as a standalone or integrated system, and can operate several robots and various peripherals in a complex system.


General:


Payload: Rated 1kg / Max 2.5kgArm Length: 450mmRepeatability: Joints #1 - #6: ±0.02mmInstallation Environment: StandardMounting Type: Table Top / Ceiling
