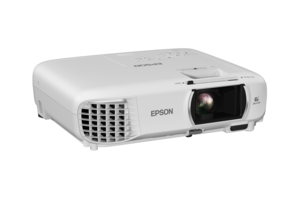

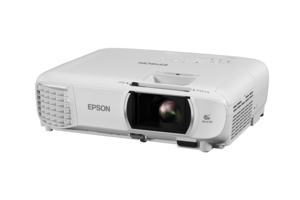

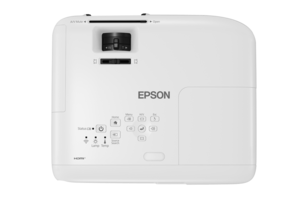

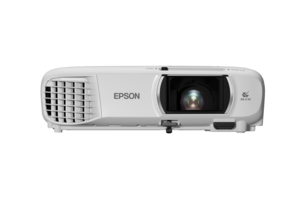

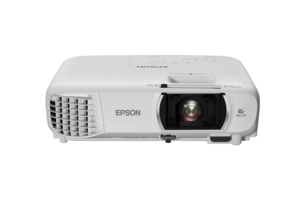

Epson Home Theatre TW750 Full HD 1080P 3LCD Projector

Product Models displayed on this website may be available in certain regions only.

Up close and personal on the actions

The Epson EH-TW750 is a highly affordable home theatre projector that delivers quality entertainment and immersive gaming experience right in your living room.

  • White and Colour Brightness at 3,400lm
  • Full HD resolution (1080P)
  • 16,000:1 Contrast Ratio
  • Split screen function



High contrast ratio
Feast your eyes on beautifully projected well-defined images and videos regardless of ambient light, all thanks to Epson’s Auto Iris Technology, which provides optimum contrast and brightness for each scene.



Wide-range connectivity
Home entertainment is now made more accessible than ever! Epson’s own range of projectors allows integrated support for multiple connection methods including HDMI connection to suit a wide range of entertainment devices.
Wireless transmission
Projecting high contrast, vivid images smoothly is made convenient with the wireless transmission feature in our projectors. With the built-in Wi-Fi adaptor, Miracast connectivity and iProjection app, you can now project images directly from Android and Apple iOS smart devices, PCs and even laptops.

Fuss-free installation
A quick, fuss-free, and user-friendly installation process, you are just a few steps away from your next movie with Epson’s home entertainment projectors. Thanks to vertical and horizontal keystone corrections, you can place your projector off centre from your projection screen to watch movies come alive.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Specifications of Main Parts:


LCD: 0.61” wide panel (C2 Fine)
Native Resolution: 1080pLightsource: Type: Lamp: 210W UHE
Lamp Life*1: High: 6,000 / Eco: 12,000 hoursProjection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
Throw Ratio: 1.02 – 1.23 (Wide – Tele
Zoom Ratio: 1 – 1.20
Focal Length: 14.06 – 16.82 mm
F-Number: 1.58 – 1.7

Brightness2:


White Light Output (Normal/Eco): 3400 lm / 2,200 lmColour Light Output: 3400 lm

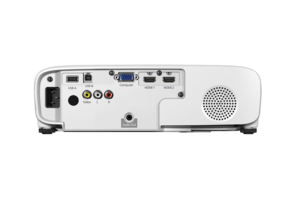

Connectivity:


USB Interface: USB Type B: 1 (for Firmware Update, Copy OSD Settings
USB Type A: 1 (for Wireless LAN,1 (for Wireless LAN, Firmware Update, Copy OSD Settings)Network: Wireless: Built-InAnalog Input: D-Sub 15Pin: 1 (Blue)Digital Input: HDMI: 2Audio Input: RCA White x1, Red x1Audio Output: Stereo Mini Jack x 1

Contrast Ratio:


Contrast Ratio: 16,000:1

Screen Size (Projected Distance):


Standard Size: 60” screen 1.35 to 1.64 mZoom : Wide: 30” – 300” [0.67 to 6.86 mZoom : Tele: 30” – 300” [0.81 to 8.28 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30°

Adjustment Functions:


Picture In Picture: NAAspect Mode: Yes (Auto / Normal / Full / Zoom)

Image Enhancement:


Detail Enhancement: Yes

Start-Up Period:


Start-Up Period: Under 6 seconds
Warm-up period: 30 seconds

Operating Temperature:


Operating Temperature: 5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft)
(20% - 80% humidity, No condensation)

Operating Altitude:


Operating Altitude: 0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High altitude mode)

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 302 x 87 x 249 mm

Weight:


Weight: Approx. 2.8kg

Direct Power On/Off:


Direct Power On/Off: Yes / Yes

Optional Wireless & Built In Lan Specifications:


Supported Speed for each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150 Mbps*3Wireless LAN Security: Infrastructure: OPEN WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point: OPEN WPA2-PSK(AES)

Cool Down Period:


Cool Down Period: Instant Off

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 28dB

Projectors Facets:


Resolution, Projectors Facets: 1080pContrast Ratio, Projectors Facets: 16,000:1Brightness Range Lumens, Projectors Facets: 20004K PRO-UHD, Projectors Facets: NoFeatures, Projectors Facets: Wifi
Quick CornerLaser / Lamp, Projectors Facets: LampScreen Size, Projectors Facets: 30 - 300Projector Primary Usage, Projectors Facets: Living Room
Home Entertainment

Power Supply Voltage:


Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220 - 240V):


Lamp On (Normal/Eco): 327W / 225WStand By (Network On / Off): 2.0 W / 0.3 W

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

*4 When used in the general office environment (the amount of floating dust: 0.04-0.2 mg/m3). Based on the Epson’s in-house test results.
